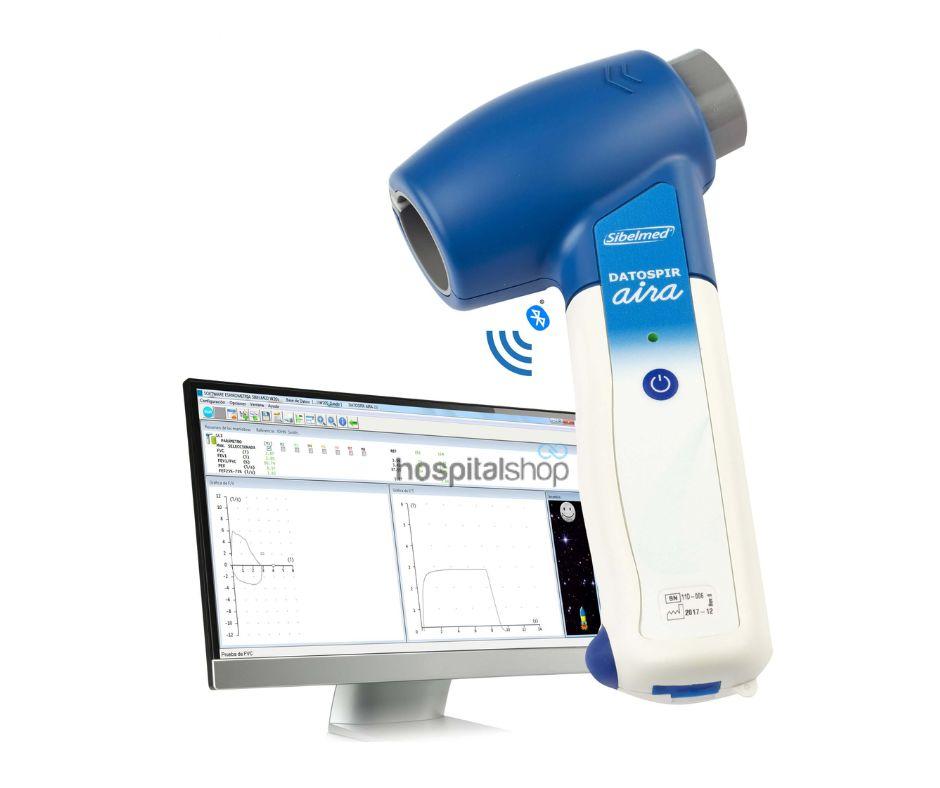

Sibelmed Datospir Aira D Spirometer 09064

The Datospir Aira D is a compact, handheld spirometer engineered for reliability, wireless connectivity, and modular transducer options—ideal for occupational health, primary care, pulmonary function units, and private practices. It combines USB and Bluetooth communication with SIBELMED’s intuitive W20s software for comprehensive pulmonary assessment

Technical Specifications

Measurement Ranges (BTPS corrected):

1. Flow: 0 to ±16 L/s
2. Volume: up to 10 L

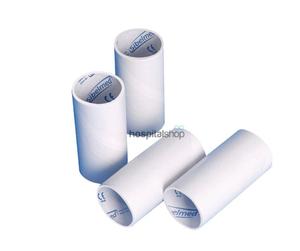

3. Resistance at 14 L/s: Disposable: <1.2 cmH₂O/(L/s)

Measurement Accuracy (per ATS/ERS 2005, EN ISO 23747:2015):

1. Volume: ≤ 3% or 50 mL
2. Flow: ≤ 5% or 200 mL/s

Connectivity:

1. Bluetooth® 5.1 Dual-mode (Classic + BLE)
2. USB 2.0 / USB 3.0 compatibility
3. Plug-and-Play integration with W20s software
4. Power Supply:  2 × AAA Alkaline batteries (standard)
5. Environmental Sensor & Auto‑Shutdown: Integrated ambient temperature sensor
6. Auto‑shutdown to preserve battery life

Spirometry Tests & Parameters

Core Tests:

1. FVC (Forced Vital Capacity) / Bronchodilation
2. VC (Vital Capacity)
3. MVV (Maximal Voluntary Ventilation)
4. Bronchoconstriction protocols

Derived Parameters (> 40 parameters):

1. FEV₀.₅, FEV₀.₇₅, FEV₁, FEV₃
2. PEF, FEF₂₅–₂₅, FEF₅₀%, FEF₇₅–₈₅%
3. FEV₁/VC, FEV₁/FVC, FEV₁/FEV₆
4. FIF₅₀%, FIVC, FIV₁, MTT, Vext, MVVind, EPOC index, Lung Age, etc.

Quality Control Features:

1. ATS/ERS 2019 quality grading
2. Incentive graphics, simultaneous flow-volume and volume-time curves
3. Automated diagnostics with trend analysis
4. Reference value sets including Quanjer 2012 GLI, Z-score & LLN

Software & Data Management

1. Preloaded Software: SIBELMED W20s
2. Compatible with Windows XP through Windows 11
3. Real-time display, incentive feedback, quality control grading
4. Trend reports, multi‑database management, and automatic diagnosis suggestions

Export & Interoperability:

1. Export formats: XML, PDF, DICOM, CDA/HL7 via optional W20sLink module
2. Interoperable with hospital HIS systems

Standards & Compliance

1. Conforms to ERG/ATS 2019 guidelines and GLI/Quanjer 2012 reference values
2. Follows ATS/ERS 2005 accuracy requirements, compliant with ISO 23747:2015 standards
3. CE marked and produced within ISO 9001 / ISO 13485 quality systems
